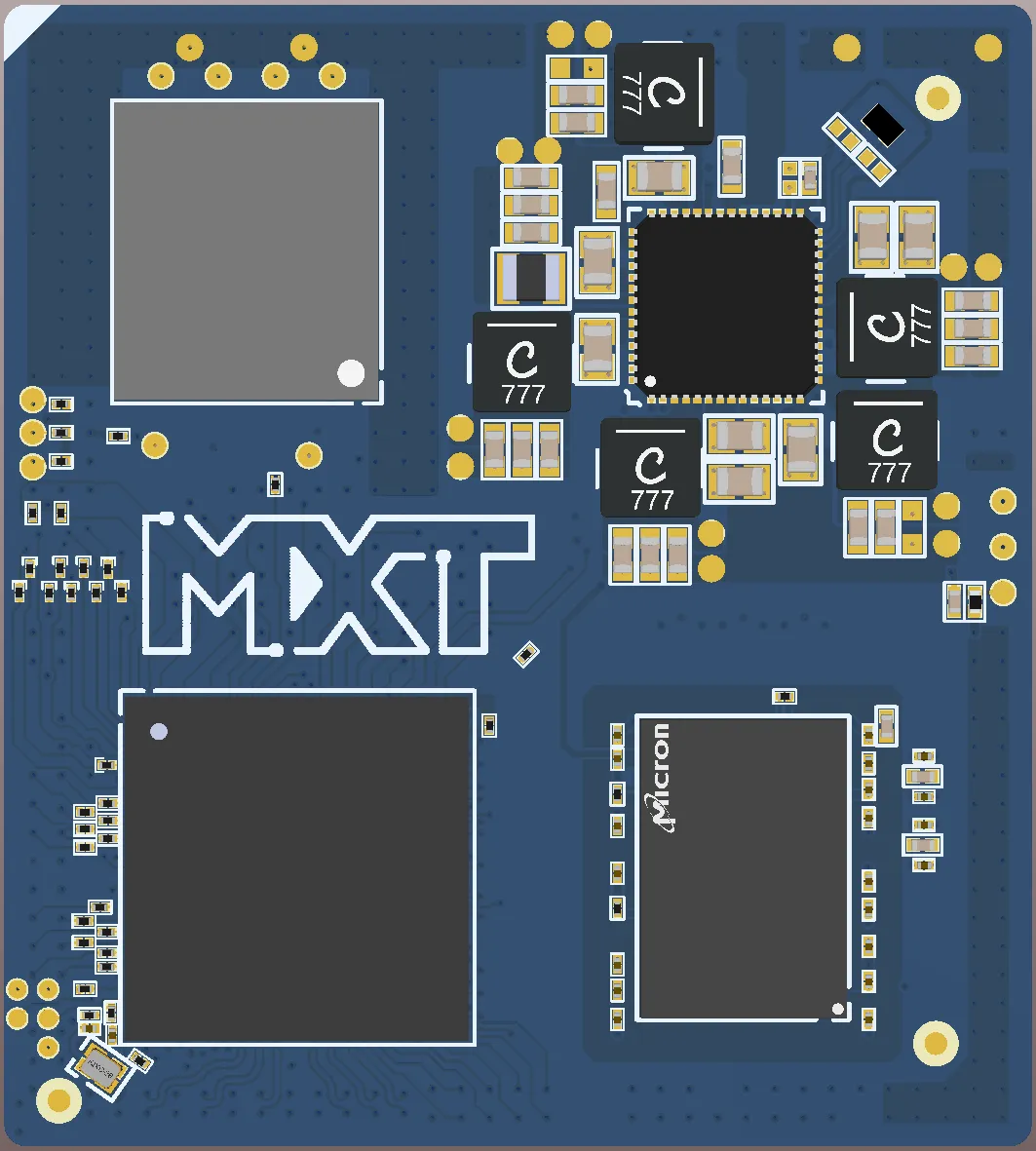

MXT-RZG2L-LGA_Top

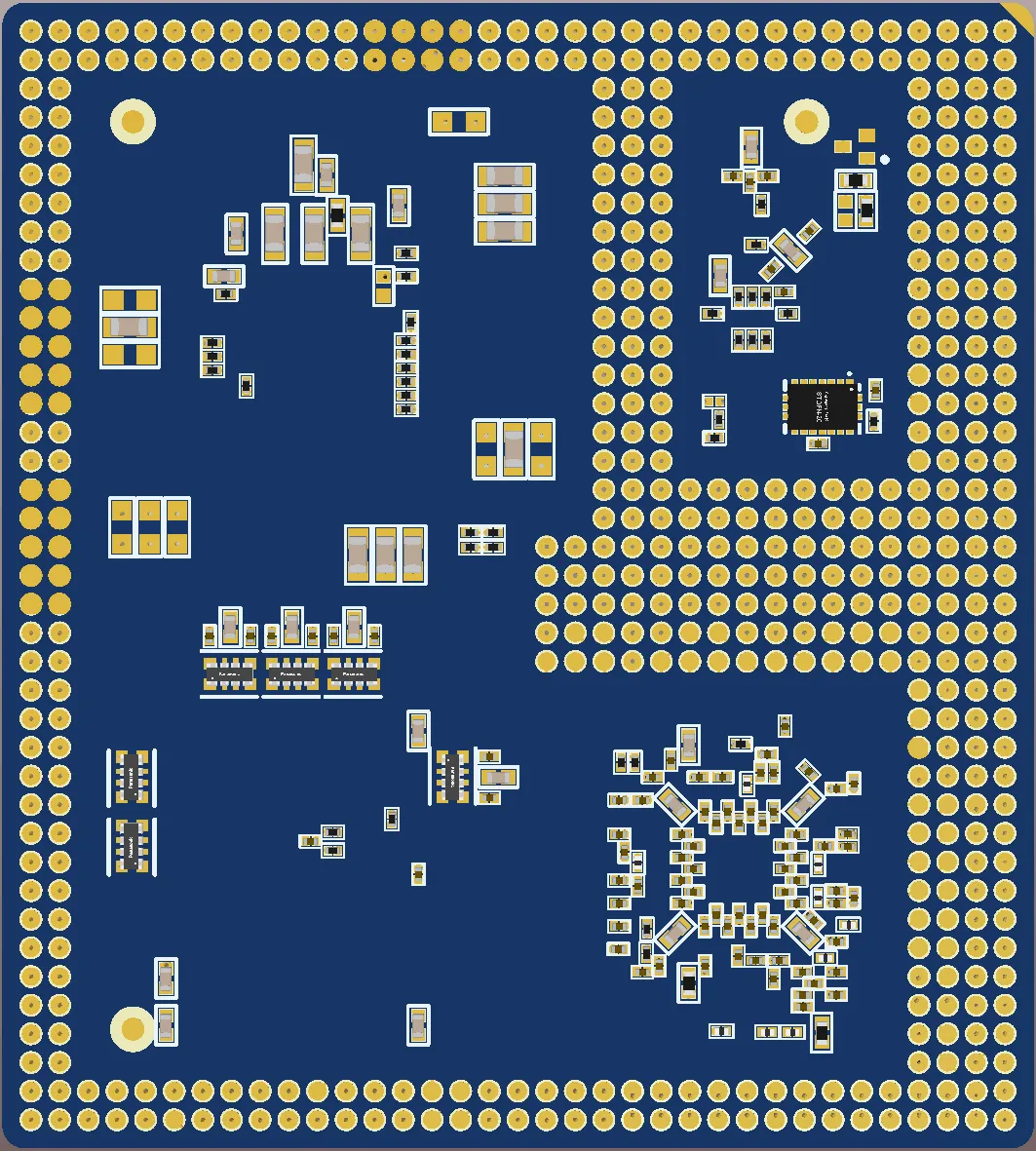

MXT-RZG2L-LGA_Bottom

MXT SoM for RZ/G2L – Industrial HMI & Embedded Multimedia

System-on-Module (SoM) / Embedded Multimedia Platform for Industrial Display & Control

The MXT SoM for RZ/G2L is a purpose-built module designed to deliver high-quality human-machine interface (HMI) functionality and embedded multimedia capabilities in industrial systems, smart displays and control equipment. Powered by the Renesas RZ/G2L MPU — featuring dual Arm® Cortex®-A55 cores, a dedicated Cortex-M33 core, 3D graphics engine and video codec support — it offers a compelling mix of performance, graphics and integration ease. Combined with MXT’s engineering excellence, long-term availability assurance and module-level simplicity, this solution enables OEMs to accelerate time-to-market and focus on value-added design rather than core platform complexity.

Request Quote

Key Highlights

Based on RZ/G2L MPU: dual Arm® Cortex®-A55 cores at up to ~1.2 GHz + Cortex-M33 for real-time tasks.

Integrated Arm® Mali™-G31 3D graphics engine and H.264 video codec, enabling rich GUI, video playback and multimedia displays.

Display and camera interfaces: MIPI-DSI / parallel display out; MIPI-CSI or parallel camera IF; enabling advanced HMI with sensor input.

High-speed connectivity and industrial I/O: dual Gigabit Ethernet, CAN-FD, USB 2.0, DDR3L/DDR4 memory interface with ECC for reliability.

Modular SoM format by MXT: simplifies carrier-board design, shortens certification cycle and supports long term service life.

Strong software foundation: Linux/Yocto BSP, multimedia drivers and MXT design-in support for production readiness.

Applications

  • Industrial operator panels, human-machine displays and control consoles where high-quality graphics and responsiveness matter.
  • Smart signage, digital kiosks and embedded multimedia displays with network connectivity and integrated control.
  • Gateway or visualization nodes in building automation, energy management or infrastructure systems with need for rich UI + embedded control.
  • Machine-vision HMI platforms combining display, control and sensor input in a compact industrial form-factor.

Key Highlights

MXT provides a fully validated Board Support Package (BSP) for the SoM, optimized for HMI and multimedia workflows on the RZ/G2L platform. The ecosystem includes GUI libraries, video playback support, networking stacks and long-term maintenance (firmware updates, security patches). The underlying MPU’s industrial-grade architecture and long lifecycle support (through Renesas) further enhance production viability.

The SoM can be tailored to your specific requirements: choose memory and storage variants, select display/camera interface combinations, adjust thermal/mechanical options, and apply custom branding. MXT’s engineering team supports full system integration, carrier-board design guidance, firmware optimization and manufacturing support — reducing risk and accelerating your product launch.

Built for industrial use: designed for continuous operation, with components and manufacturing practices selected for long life-cycle, and certified for CE, RoHS compliance. ECC memory support and industrial reliability features make it suited for 24/7 operational environments.
