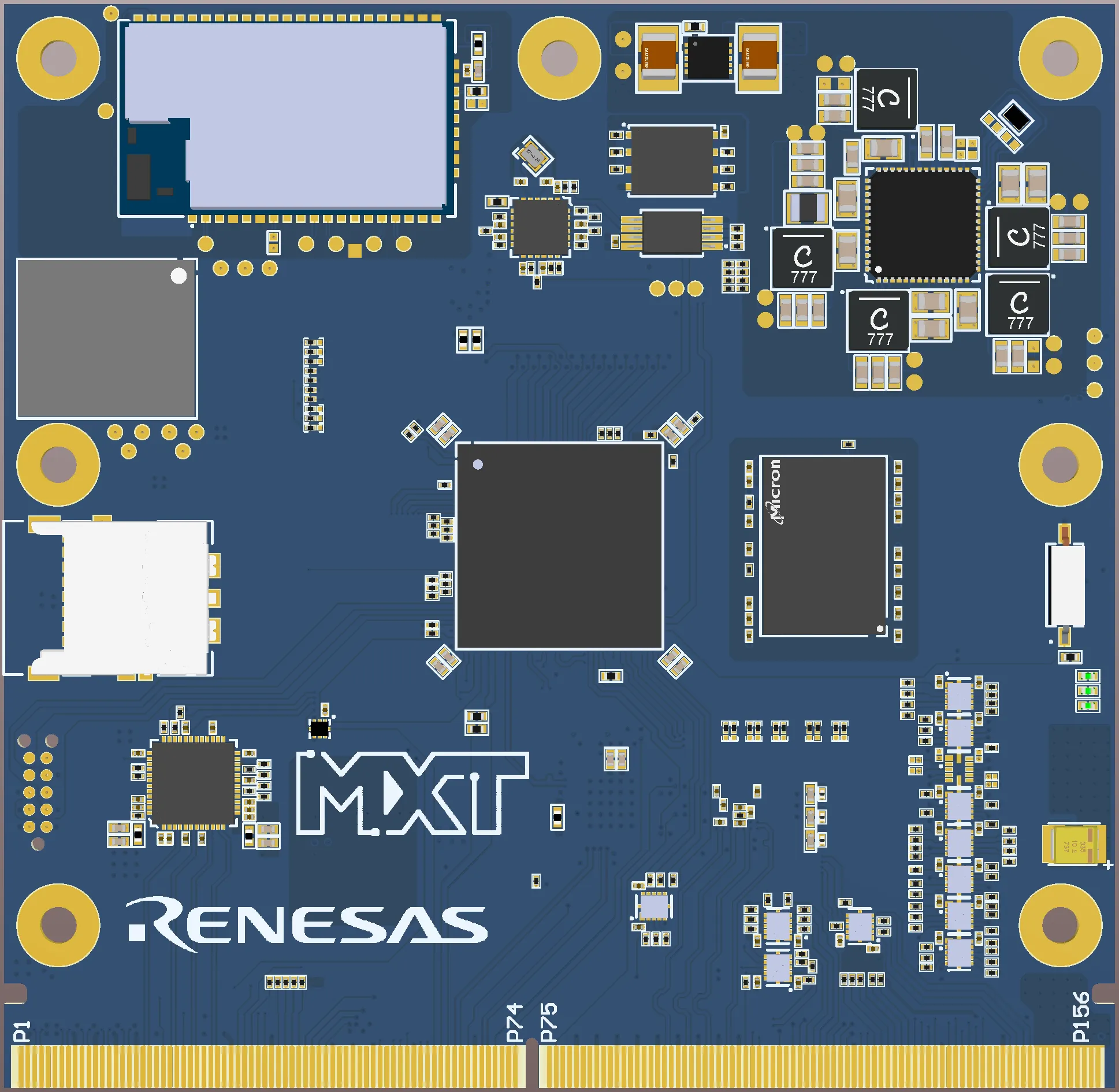

MXT SMARC SoM for Renesas RZ/G2L – HMI & Multimedia Applications

System-on-Module (SoM) / SMARC-Standard Embedded Platform for Industrial HMI and Multimedia

The MXT SMARC SoM for RZ/G2L is engineered to address the demanding requirements of next-generation human-machine interfaces (HMI), multimedia systems and embedded display applications. Built around the Renesas RZ/G2L MPU, this module harnesses dual Arm® Cortex®-A55 cores, a 3D graphics engine and full-featured video codec capabilities — offering a high performance yet cost-efficient platform for OEMs. Paired with MXT’s robust support services, long-term availability and customization options, this SoM delivers a streamlined path from design to market for devices such as industrial panels, signage, automated control consoles and smart gateway displays.

Request Quote

Key Highlights

Based on the Renesas RZ/G2L MPU featuring dual Cortex®-A55 cores at up to ~1.2 GHz plus a Cortex-M33 auxiliary core — optimized for HMI and multimedia workloads.

Integrated Arm® Mali™-G31 3D graphics engine and H.264 video codec engine — enabling rich GUIs, smooth video playback and high-quality display output.

Rich interface set for multimedia and HMI: camera input (MIPI-CSI / parallel), display output (MIPI-DSI / parallel), dual Gigabit Ethernet, USB 2.0, CAN-FD, I²C/SPI interfaces

SMARC-standard module format from MXT simplifies integration, reduces time-to-market and supports long lifecycle in industrial environments.

Full software ecosystem: Linux/Yocto based BSP, multimedia and HMI libraries, long-term firmware and security updates – backed by MXT’s engineering services.

Industrial-grade reliability and scalability: components selected for 24/7 operations, extended availability, and built-for-HMI system robustness.

Applications

  • Industrial operator panels and touch-screens requiring high-resolution graphics and seamless UI responsiveness.
  • Smart signage, digital displays and kiosks with multimedia playback, network connectivity and user-interaction capabilities.
  • Embedded display systems in automation, building management, transportation or energy-infrastructure environments.
  • Smart gateway or edge-display units combining connectivity, visualization and control functions in one platform.

Key Highlights

MXT offers a validated Board Support Package (BSP) aligned with the RZ/G2L platform and optimized for HMI and multimedia tasks. Developers benefit from libraries for graphics acceleration, video engines and interface drivers, along with long-term firmware maintenance and design-in support. The underlying Renesas architecture also supports robust security features (TrustZone®, secure boot) and is certified for industrial-grade reliability.

The SMARC SoM can be customized to meet your project’s needs: choice of memory/storage configurations, tailored I/O interface sets (extra display ports, camera inputs, CAN/ethernet variants), mechanical/thermal adaptations, and firmware/OS tuning. MXT’s engineering team provides carrier-board design guidance, firmware optimization and full integration support to accelerate your time-to-market.

The module is built for industrial use: certified for CE, RoHS compliance; designed with long-term availability components and quality manufacturing processes; suited for continuous operation in demanding environments.
